Dorand AR Type

The Dorand AR.1 was a World War One French two-seat observation biplane aircraft used by the French Air Force, the American Expeditionary Force and, in small numbers, by Serbian Aviation.

Designed by Captain Georges Lepère of the French Army Aircraft Establishment to replace the obsolescent Farman F.40 pusher aircraft, Dorand AR-series were two-seater reconnaissance biplanes that were named after the F.A.A.E's director, Lt. Col. Dorand. They were characterized by backward-staggered three-bay wings and angular all-moving tail surfaces.

The pilot sat beneath the leading edge of the upper wing, with the observer's cockpit being under the trailing edge, and there were cut-outs in both wings to improve the latter's field of view. Rather unusually for a single-engine tractor biplane of the era, the lower wing was not directly attached to the fuselage, instead being somewhat below it, supported by struts.
Production of these aircraft began in a state-owned French Army Aircraft Establishment (or S.T.Aé.) factory at Chalais-Meudon, near Paris, after flight testing had been completed in the autumn 1916.
The first of the thirteen squadrons which flew Dorands on the Western Front received their aircraft in the spring 1917. Five other French squadrons used the type on the Italian Front. These aircraft were withdrawn from the combat units in early 1918.

In 1917 the American Expeditionary Force ordered the Renault-engined varieties of the Dorand, the first of 22 AR.1s being delivered in December 1917 and the first of 120 AR.2s in following February. The Americans operated these types on the Western Front for the first half 1918, until replacing them with the Salmson 2. After being retired from fighting duties, the surviving examples were used as trainers.

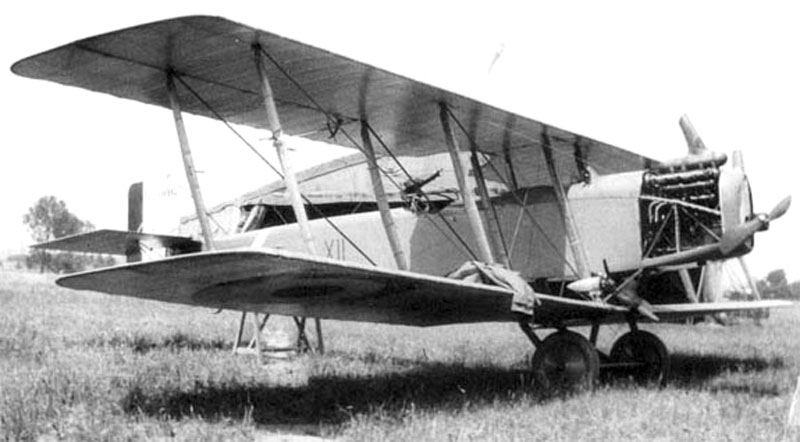

Dorand AR.2's of the first Serbian squadron
A small number of Dorand AR.1s were also supplied to Kingdom of Serbia, which operated these aircraft in four squadrons from April 1918 onwards.

While the Dorand AR-types didn't have a particularly distinguished career in either French or American service, having a rather mediocre performance for a late-war daytime reconnaissance aircraft and suffering from having low priority for engine supplies, it is a testimony to the general soundness of the design that after the war, many AR.1s and AR.2s appeared in the French civil register, being used as 2/3-passenger transports by companies like Compagnie Aérienne Française and Réseau Aérien Transafricain. Private users found the aircraft useful for training and joy-flights as well.
General characteristics
Crew: 2 , pilot and observer
Length: 8.225 m
Wingspan: 13.3 m
Wing area: 50.36 m2
Empty weight: 890 kg
Gross weight: 1,330 kg
Fuel capacity: 170 l
Powerplant: 1 × Renault 8Gdy V-8 water-cooled piston engine, 150 kW (200 hp)
Propellers: 2-bladed wooden fixed pitch propeller
Maximum speed: 148 km/h  at 2,000 m
Endurance: 3 hours
Service ceiling: 5,500 m
Wing loading: 26.4 kg/m2
Power/mass: 0.143 kW/kg
Armament: 1 × fixed forward-firing 7.7 mm Vickers machine gun for the pilot
1 or 2 × 7.7 mm (.303 in) Lewis gun(s) on a movable mounting for the observer
