First used in combat over the Dieppe Raid on 19 August 1942, a Mustang of No. 414 (RCAF) Squadron downed one of the formidable Focke-Wulf Fw 190, the first victory for a Mustang. Despite the limited high-altitude performance of the Allison V-1710 engine, the RAF was enthusiastic about its new mount which "performed magnificently."
Sole RAF A-36A EW998, showing the slatted dive brakes and carrying American 500lb (226kg) bombs on the racks beneath the wings.
During the Mustang I's successful combat initiation, North American's president Howard "Dutch" Kindelberger pressed the newly redesignated U.S. Army Air Forces (USAAF) for a fighter contract for the essentially similar P-51, 93 of which had passed into the USAAF when the Lend-Lease contract with Britain ran out of funds.
The Mustang IA/P-51 used four 20 mm Hispano wing cannon in place of the original armament, a combination of four wing-mounted .30 caliber (7.62 mm) M1919 Browning machine guns and four .50 caliber (12.7 mm) M2 Browning machine guns, two of which were mounted in the wings, while the second pair was mounted in the "chin", or lower engine cowling, and synchronized to fire through propeller. No funds were available for new fighter contracts in fiscal year 1942, but General Oliver P. Echols and Fighter Project Officer Benjamin S. Kelsey wanted to ensure the P-51 remained in production.
Since appropriations were available for an attack aircraft, Echols specified modifications to the P-51 to turn it into a dive bomber. The contract for 500 A-36A aircraft fitted with bomb racks, dive brakes, and heavier-duty wing, was signed by Kelsey on 16 April 1942, even before the first flight of the first production P-51 in May 1942. With orders on the books, North American Aviation (NAA) began modifying the P-51 to accept the bomb shackles which had already been tested in a "long-range ferry" program RAF had stipulated.
--------------------------------------
Length: 32 ft 3 in (9.83 m)
Wingspan: 37 ft 0.25 in (11.28 m)
Height: 12 ft 2 in (3.71 m)
Loaded weight: 10,000 lb (4,535 kg)
Powerplant: 1 × Allison V-1710-87 liquid-cooled piston V12 engine, 1,325 hp (988 kW)
Maximum speed: 365 mph (315 kn, 590 km/h)
Cruise speed: 250 mph (215 kn, 400 km/h)
Range: 550 mi (478 nmi, 885 km)
Service ceiling: 25,100ft (7,650 m)
Armament: 6 × 0.50 in (12.7 mm) M2 Browning machine guns
Up to 1,000 lb (454 kg) of bombs on two underwing hardpoints

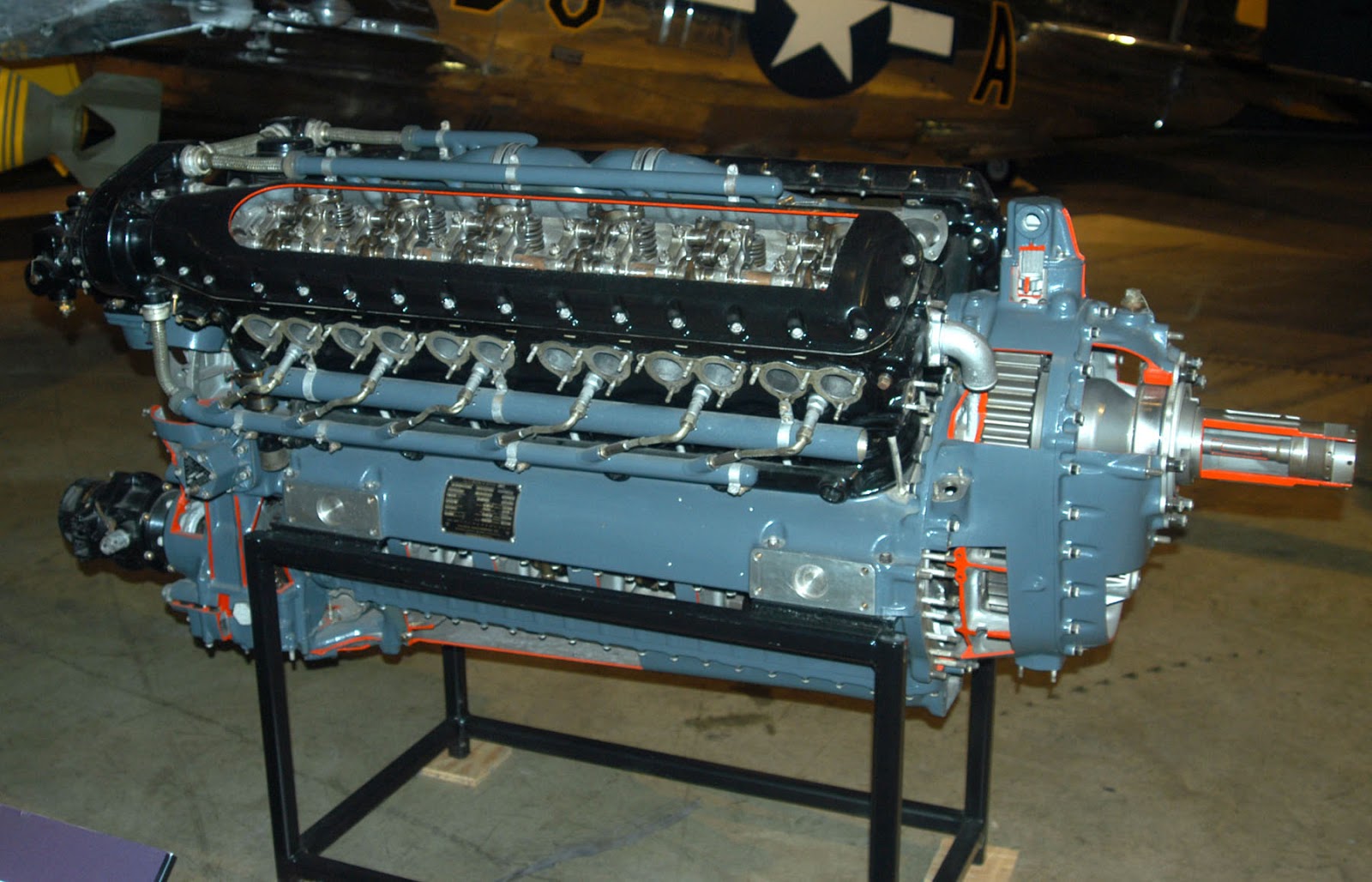

Allison V-1710
Rolls-Royce V 1650 Merlin
PACCARD-MERLIN type 61 = Mustang
----------------------------------
Engineering studies totaling 40,000 hours and wind tunnel testing with a ⅛-scale model was completed in June 1942. Utilizing the basic P-51 airframe and Allison engine, structural reinforcing "beefed up" several high stress areas and "a set of hydraulically operated dive brakes were installed in each main wing plane." Due to the slightly inboard placement of the bomb racks and unique installation of four cast aluminum dive brakes, a complete redesign of the P-51 wing was required.
A-36A production line at NAA Inglewood, October 1942.
The first A-36A (42-83663) was rolled out of the NAA Inglewood plant in September 1942, rapidly going through flight testing with the first flight in October, with deliveries commencing soon after of the first production machines emerged. The A-36A continued the use of nose-mounted .50 in (12.7 mm) machine guns along with wing armament of four .50 in (12.7 mm) caliber machine guns (this was the heaviest armament package of all the Allison-power Mustangs).
The USAAF envisaged that the dive bomber would operate mainly at altitudes below 12,000 ft (3,658 m) and specified the use of a sea level-rated Allison V-1710-87, driving a 10 ft 9 in (3.28 m)-diameter three bladed Curtiss-Electric propeller and delivering 1,325 hp (988 kW) at 3,000 ft (914 m). The main air scoop inlet was redesigned to become a fixed unit with a larger opening, replacing the earlier scoop which could be lowered into the airstream. In addition the A-36 carburetor air intake was later fitted with a tropical air filter to stop sand and grit being ingested into the engine.
The USAAF later ordered 310 P-51As which were essentially A-36s without the dive-brakes and nose mounted weapons, leaving an armament of four wing-mounted 0.50 in (12.7 mm) Browning machine guns. An Allison V-1710-81 1,200 hp (895 kW) was fitted and used the same radiator and air intake as the A-36A. The P-51A was still fitted with bomb racks although it was not intended to be used primarily as a fighter-bomber and the racks were mainly used to carry drop tanks.
A-36A of the 86th Fighter Bomber Group (Dive)in Italy in 1944.
The A-36A-1-NA "Apache" (although Apache was the A-36A's official name, it was rarely used)[14] joined the 27th Fighter Bomber Group composed of four squadrons based at Rasel Ma in French Morocco in April 1943 during the campaign in North Africa. The 27th had a mixed component of Douglas A-20 Havocs and A-36As while the second operational unit, the 86th Fighter Bomber Group (Dive) arrived in March 1943 with the first pilots trained and qualified on the A-36A.
On 6 June 1943, both of these With the introduction of the North American Mustang I with the RAF Army Co-operation Squadrons in February 1942, the new fighter began combat missions as a low-altitude reconnaissance and ground-support aircraft. Supplementing the Curtiss P-40 Tomahawks already in service, Mustang Is were first supplied to No. 26 Squadron RAF, then rapidly deployed to 10 additional squadrons by June 1942.
First used in combat over the Dieppe Raid on 19 August 1942, a Mustang of No. 414 (RCAF) Squadron downed one of the formidable Focke-Wulf Fw 190, the first victory for a Mustang. Despite the limited high-altitude performance of the Allison V-1710 engine, the RAF was enthusiastic about its new mount which "performed magnificently."
Sole RAF A-36A EW998, showing the slatted dive brakes and carrying American 500lb (226kg) bombs on the racks beneath the wings.
During the Mustang I's successful combat initiation, North American's president Howard "Dutch" Kindelberger pressed the newly redesignated U.S. Army Air Forces (USAAF) for a fighter contract for the essentially similar P-51, 93 of which had passed into the USAAF when the Lend-Lease contract with Britain ran out of funds.
The Mustang IA/P-51 used four 20 mm Hispano wing cannon in place of the original armament, a combination of four wing-mounted .30 caliber (7.62 mm) M1919 Browning machine guns and four .50 caliber (12.7 mm) M2 Browning machine guns, two of which were mounted in the wings, while the second pair was mounted in the "chin", or lower engine cowling, and synchronized to fire through propeller. No funds were available for new fighter contracts in fiscal year 1942, but General Oliver P. Echols and Fighter Project Officer Benjamin S. Kelsey wanted to ensure the P-51 remained in production.
Since appropriations were available for an attack aircraft, Echols specified modifications to the P-51 to turn it into a dive bomber. The contract for 500 A-36A aircraft fitted with bomb racks, dive brakes, and heavier-duty wing, was signed by Kelsey on 16 April 1942, even before the first flight of the first production P-51 in May 1942. With orders on the books, North American Aviation (NAA) began modifying the P-51 to accept the bomb shackles which had already been tested in a "long-range ferry" program RAF had stipulated.
Engineering studies totaling 40,000 hours and wind tunnel testing with a ⅛-scale model was completed in June 1942. Utilizing the basic P-51 airframe and Allison engine, structural reinforcing "beefed up" several high stress areas and "a set of hydraulically operated dive brakes were installed in each main wing plane." Due to the slightly inboard placement of the bomb racks and unique installation of four cast aluminum dive brakes, a complete redesign of the P-51 wing was required.
A-36A production line at NAA Inglewood, October 1942.
The first A-36A (42-83663) was rolled out of the NAA Inglewood plant in September 1942, rapidly going through flight testing with the first flight in October, with deliveries commencing soon after of the first production machines emerged. The A-36A continued the use of nose-mounted .50 in (12.7 mm) machine guns along with wing armament of four .50 in (12.7 mm) caliber machine guns (this was the heaviest armament package of all the Allison-power Mustangs).
The USAAF envisaged that the dive bomber would operate mainly at altitudes below 12,000 ft (3,658 m) and specified the use of a sea level-rated Allison V-1710-87, driving a 10 ft 9 in (3.28 m)-diameter three bladed Curtiss-Electric propeller and delivering 1,325 hp (988 kW) at 3,000 ft (914 m). The main air scoop inlet was redesigned to become a fixed unit with a larger opening, replacing the earlier scoop which could be lowered into the airstream. In addition the A-36 carburetor air intake was later fitted with a tropical air filter to stop sand and grit being ingested into the engine.
The USAAF later ordered 310 P-51As which were essentially A-36s without the dive-brakes and nose mounted weapons, leaving an armament of four wing-mounted 0.50 in (12.7 mm) Browning machine guns. An Allison V-1710-81 1,200 hp (895 kW) was fitted and used the same radiator and air intake as the A-36A. The P-51A was still fitted with bomb racks although it was not intended to be used primarily as a fighter-bomber and the racks were mainly used to carry drop tanks.
A-36A of the 86th Fighter Bomber Group (Dive)in Italy in 1944.
The A-36A-1-NA "Apache" (although Apache was the A-36A's official name, it was rarely used) joined the 27th Fighter Bomber Group composed of four squadrons based at Rasel Ma in French Morocco in April 1943 during the campaign in North Africa. The 27th had a mixed component of Douglas A-20 Havocs and A-36As while the second operational unit, the 86th Fighter Bomber Group (Dive) arrived in March 1943 with the first pilots trained and qualified on the A-36A.
On 6 June 1943, both of these A-36A units flew combat missions directed against the island of Pantelleria. The island fell to Allied attack and became the home base for the two A-36A groups during the invasion of Sicily. The A-36A proved to be a potent weapon; it could be put into a vertical dive at 12,000 ft (3,658 m)with deployed dive brakes, thus, limiting the dive speed to 390 mph (628 km/h)("A36A-1 Flight Manual requires deployment before starting a dive").
Pilots soon recognized that extending the dive brakes after "peel-off" led to some unequal extension of the brakes due to varying hydraulic pressure, setting up an invariable slight roll which impeded aiming. Proper technique soon cured this anomaly and, subsequently, pilots achieved extremely consistent results. Depending on the target and defenses, the bomb release took place between 2,000 ft and 4,000 ft (610 and 1,219 m), followed by an immediate sharp "pull up."
Dive brakes in the wings gave the A-36A greater stability in a dive; however, a myth has arisen that they were useless due to malfunctions or because of the danger of deploying them and that they should be wired closed. Capt. Charles E. Dills, 27th Fighter-Bomber Group, 522d Fighter Squadron, XIIth Air Force emphatically stated in a postwar interview: "I flew the A-36 for 39 of my 94 missions, from 11/43 to 3/44. They were never wired shut in Italy in combat. This 'wired shut' story apparently came from the training group at Harding Field, Baton Rouge, LA."
However, tactical reconnaissance training with P-51 and A-36 aircraft had delivered some disquieting accident rates. At one time, A-36 training had resulted in the type having "the highest accident rate per hour's flying time" of any USAAF aircraft. The most serious incident involved an A-36A shedding both wings when its pilot tried to pull out from a 450 mph (724 km/h) dive. Combat units flying the A-36A were ordered to restrict their approach to a 70° "glide" attack and refrain from using dive brakes. This order was generally ignored by experienced pilots but some units did wire dive brakes shut until modifications were made to the hydraulic actuators.
Nevertheless, the A-36 was used with great success as a dive-bomber, acquiring a reputation for precision, sturdiness and silence.
By late May 1943, 300 A-36As had been deployed to the Mediterranean Theater, with many of the first batch sent to the 27th to re-build the group following losses as well as completing the final transition to an all-A-36A unit. Both groups were actively involved in air support during the Sicilian campaign, becoming especially adept at "mopping" up enemy gun positions and other strong points as the Allies advanced. During this operation, the 27th Group circulated a petition to adopt the name "Invader" for their rugged little bomber, receiving unofficial recognition of the more fitting name. Despite the name change, most combat reports preferred the name "Mustang" for all of the variants.The Germans gave it a flattering, if fearsome, accolade, calling the A-36As: "screaming helldivers."
Besides dive bombing, the A-36A racked up aerial victories, totaling 84 enemy aircraft downed and creating an "ace", Lieutenant Michael T. Russo from the 27th Fighter Bomber Group (ultimately, the only ace using the Allison-engined Mustang). As fighting intensified in all theaters where the A-36A operated, the dive bomber began to suffer an alarming loss rate with 177 falling to enemy action.
The main reason for the attrition was the hazardous missions that placed the A-36A "on the deck" facing murderous ground fire. German defenses in southern Italy included placing cables across hill tops to snare the attacking A-36As. Despite establishing a "reputation for reliability and performance, "the one "Achilles' heel" of the A-36A (and the entire Mustang series) remained its vulnerable, ventral-fuselage location radiator/cooling system leading to many of the losses.[24] By June 1944, A-36As in Europe were replaced by Curtiss P-40s and Republic P-47 Thunderbolts.
Lt Col Charles "Mac" McMillin sitting in an A-36A in India, 1945. He had finished his 100 missions and was an instructor in a replacement training unit (RTU) while awaiting orders home.
A-36As had also served with the 311th Fighter Bomber Group in the China-Burma-India theater. The 311th had arrived in Dinjan, India by late summer 1943 after being shipped across the Pacific via Australia. Two squadrons were equipped with the A-36A while the third flew P-51As. Tasked with reconnaissance, dive bombing, attack and fighter missions, the A-36A was outclassed by its main opposition, the Nakajima Ki-43 "Oscar."
The light and highly agile Japanese fighter could outmaneuver the A-36A at all altitudes but did have some weak points: it was lightly armed and offered little protection for pilot or fuel tanks. However, the A-36A fought at a significant disadvantage, having to carry out long-range missions often at altitudes above the "Hump" that meant its Allison engine was below peak performance. In a fighter escort mission over Burma, three A-36As were lost without scoring a single victory. The A-36A CBI missions continued throughout 1943–1944 with indifferent results. The A-36A remained in service in small numbers throughout the remaining year of the war, some being retained in the US as training aircraft.
"The type's relatively brief service life should not camouflage the fact that it made a major contribution to the Allied war effort" especially in the Mediterranean and it amounted to the first USAAF combat use of a Mustang variant. The effectiveness of the A-36 as a ground attack aircraft was demonstrated on 5 June 1944. In a well planned attack on the large, well defended rail depot and ammo dump at Orte, Italy, Lieutenant Ross C. Watson led a flight of four A-36s through a heavy overcast on the approach to the target. Watson's A-36s scored several hits under intense anti-aircraft fire while Lt. Watson's aircraft was hit and damaged by ground fire.
Under continuing heavy ground fire. Lt. Watson pressed home his attack and destroyed the ammo dump before making an emergency landing at an advanced Allied airfield. units flew combat missions directed against the island of Pantelleria. The island fell to Allied attack and became the home base for the two A-36A groups during the invasion of Sicily. The A-36A proved to be a potent weapon; it could be put into a vertical dive at 12,000 ft (3,658 m)with deployed dive brakes, thus, limiting the dive speed to 390 mph (628 km/h)("A36A-1 Flight Manual requires deployment before starting a dive").
Pilots soon recognized that extending the dive brakes after "peel-off" led to some unequal extension of the brakes due to varying hydraulic pressure, setting up an invariable slight roll which impeded aiming. Proper technique soon cured this anomaly and, subsequently, pilots achieved extremely consistent results. Depending on the target and defenses, the bomb release took place between 2,000 ft and 4,000 ft (610 and 1,219 m), followed by an immediate sharp "pull up."
Dive brakes in the wings gave the A-36A greater stability in a dive; however, a myth has arisen that they were useless due to malfunctions or because of the danger of deploying them and that they should be wired closed. Capt. Charles E. Dills, 27th Fighter-Bomber Group, 522d Fighter Squadron, XIIth Air Force emphatically stated in a postwar interview: "I flew the A-36 for 39 of my 94 missions, from 11/43 to 3/44. They were never wired shut in Italy in combat. This 'wired shut' story apparently came from the training group at Harding Field, Baton Rouge, LA."
However, tactical reconnaissance training with P-51 and A-36 aircraft had delivered some disquieting accident rates. At one time, A-36 training had resulted in the type having "the highest accident rate per hour's flying time" of any USAAF aircraft. The most serious incident involved an A-36A shedding both wings when its pilot tried to pull out from a 450 mph (724 km/h) dive. Combat units flying the A-36A were ordered to restrict their approach to a 70° "glide" attack and refrain from using dive brakes.[20] This order was generally ignored by experienced pilots but some units did wire dive brakes shut until modifications were made to the hydraulic actuators.
Nevertheless, the A-36 was used with great success as a dive-bomber, acquiring a reputation for precision, sturdiness and silence.
By late May 1943, 300 A-36As had been deployed to the Mediterranean Theater, with many of the first batch sent to the 27th to re-build the group following losses as well as completing the final transition to an all-A-36A unit. Both groups were actively involved in air support during the Sicilian campaign, becoming especially adept at "mopping" up enemy gun positions and other strong points as the Allies advanced. During this operation, the 27th Group circulated a petition to adopt the name "Invader" for their rugged little bomber, receiving unofficial recognition of the more fitting name. Despite the name change, most combat reports preferred the name "Mustang" for all of the variants.The Germans gave it a flattering, if fearsome, accolade, calling the A-36As: "screaming helldivers."
Besides dive bombing, the A-36A racked up aerial victories, totaling 84 enemy aircraft downed and creating an "ace", Lieutenant Michael T. Russo from the 27th Fighter Bomber Group (ultimately, the only ace using the Allison-engined Mustang). As fighting intensified in all theaters where the A-36A operated, the dive bomber began to suffer an alarming loss rate with 177 falling to enemy action.
The main reason for the attrition was the hazardous missions that placed the A-36A "on the deck" facing murderous ground fire. German defenses in southern Italy included placing cables across hill tops to snare the attacking A-36As. Despite establishing a "reputation for reliability and performance, "the one "Achilles' heel" of the A-36A (and the entire Mustang series) remained its vulnerable, ventral-fuselage location radiator/cooling system leading to many of the losses. By June 1944, A-36As in Europe were replaced by Curtiss P-40s and Republic P-47 Thunderbolts.
Lt Col Charles "Mac" McMillin sitting in an A-36A in India, 1945. He had finished his 100 missions and was an instructor in a replacement training unit (RTU) while awaiting orders home.
A-36As had also served with the 311th Fighter Bomber Group in the China-Burma-India theater. The 311th had arrived in Dinjan, India by late summer 1943 after being shipped across the Pacific via Australia. Two squadrons were equipped with the A-36A while the third flew P-51As. Tasked with reconnaissance, dive bombing, attack and fighter missions, the A-36A was outclassed by its main opposition, the Nakajima Ki-43 "Oscar."
The light and highly agile Japanese fighter could outmaneuver the A-36A at all altitudes but did have some weak points: it was lightly armed and offered little protection for pilot or fuel tanks. However, the A-36A fought at a significant disadvantage, having to carry out long-range missions often at altitudes above the "Hump" that meant its Allison engine was below peak performance. In a fighter escort mission over Burma, three A-36As were lost without scoring a single victory. The A-36A CBI missions continued throughout 1943–1944 with indifferent results. The A-36A remained in service in small numbers throughout the remaining year of the war, some being retained in the US as training aircraft.
"The type's relatively brief service life should not camouflage the fact that it made a major contribution to the Allied war effort" especially in the Mediterranean and it amounted to the first USAAF combat use of a Mustang variant. The effectiveness of the A-36 as a ground attack aircraft was demonstrated on 5 June 1944. In a well planned attack on the large, well defended rail depot and ammo dump at Orte, Italy, Lieutenant Ross C. Watson led a flight of four A-36s through a heavy overcast on the approach to the target.
Watson's A-36s scored several hits under intense anti-aircraft fire while Lt. Watson's aircraft was hit and damaged by ground fire. Under continuing heavy ground fire. Lt. Watson pressed home his attack and destroyed the ammo dump before making an emergency landing at an advanced Allied airfield.
